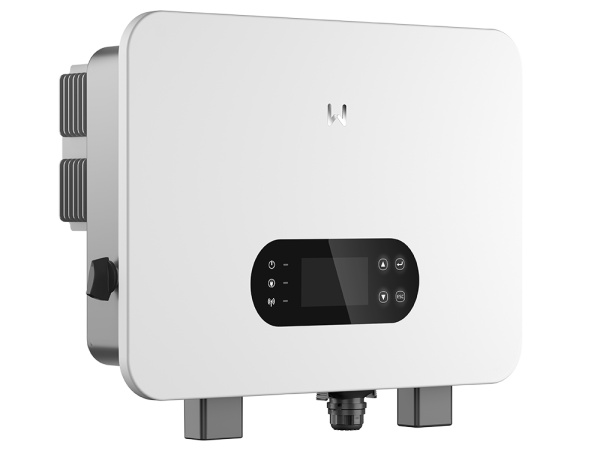

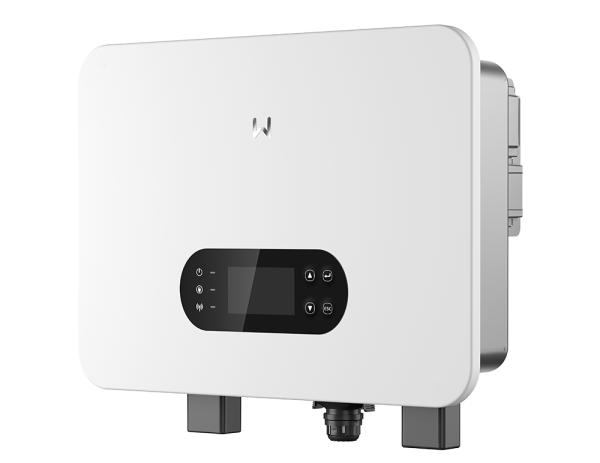

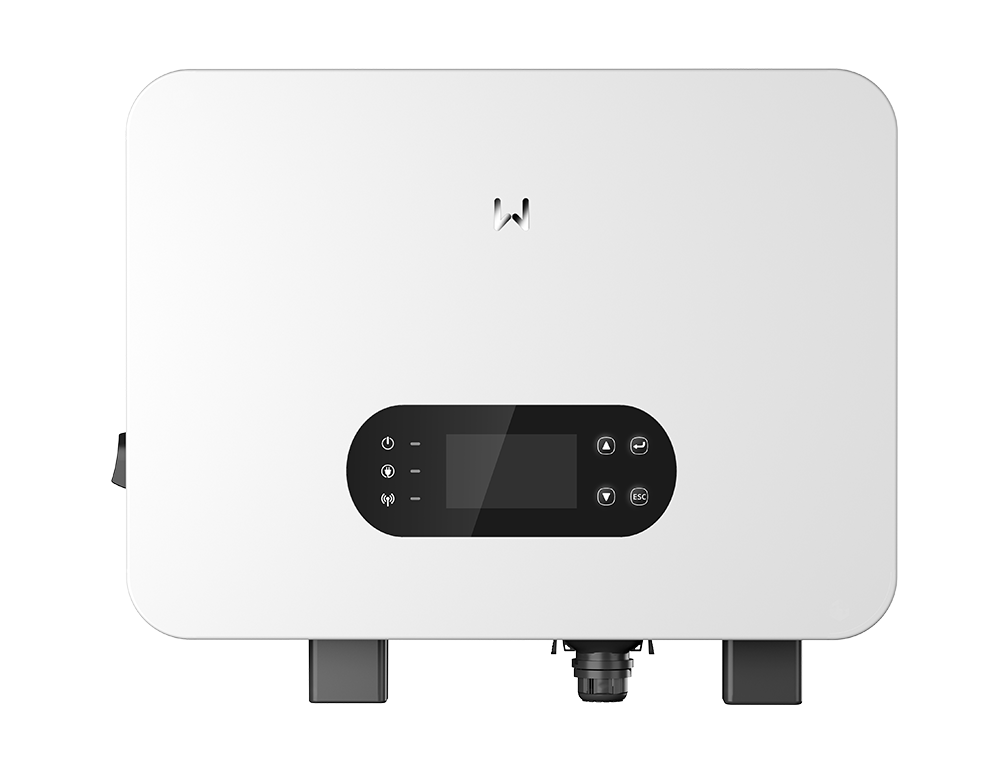

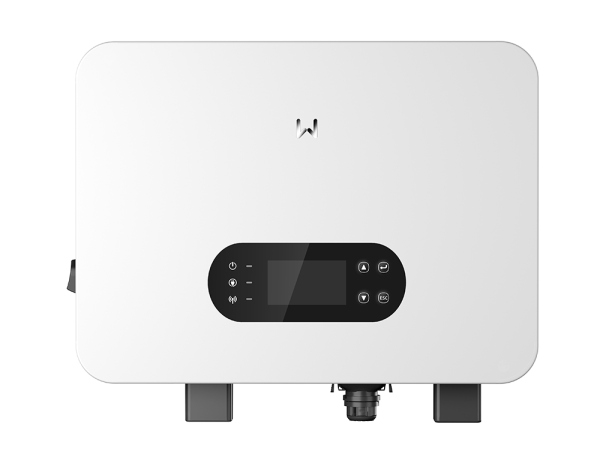

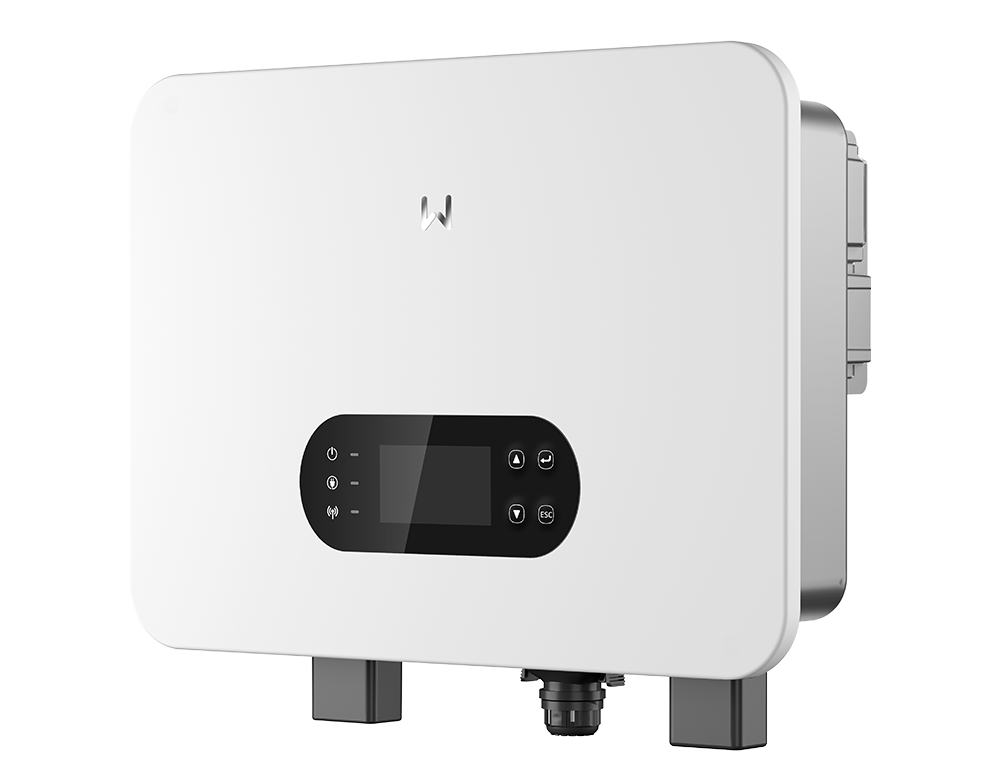

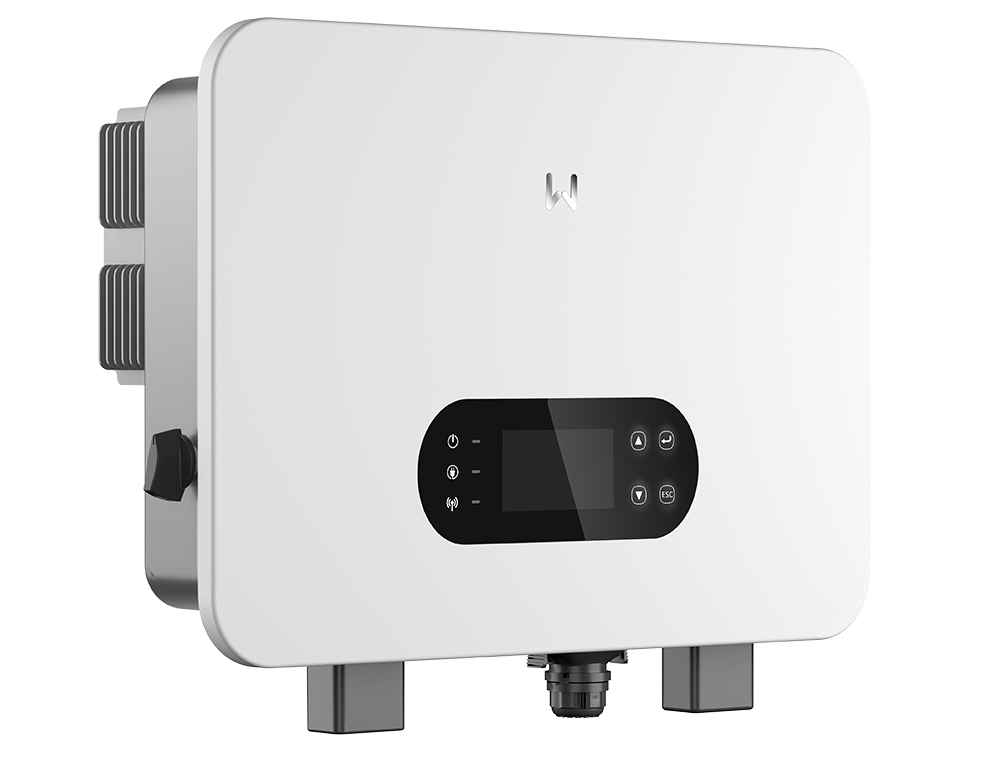

| ES Uniq Series 3-12kW | Single Phase | 1/2 MPPTs Hybrid Inverter (LV) |
|||||||
| Model | GW3000-ES-C10 | GW3600-ES-C10 | GW5000-ES-C10 | GW6000-ES-C10 | GW8000-ES-C10 | GW10K-ES-C10 | GW12K-ES-C10 |
| battery input data | |||||||
| Battery Type*1 | Li-Ion / Lead-acid | ||||||
| Nominal Battery Voltage (V) | 48 | ||||||
| Battery Voltage Range (V) | 40 ~ 60 | ||||||
| Start-up Voltage (V) | 44.2 | ||||||
| Number of Battery Input | 1 | ||||||
| Max. Continuous Charging Current (A) | 70 | 90 | 120 | 140 | 160 | 200 | 240 |
| Max. Continuous Discharging Current (A) | 70 | 90 | 120 | 140 | 160 | 200 | 240 |
| Max. Charging Power (kW)*2*3 | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 |
| Max. Discharging Power (kW)*2*3 | 3.3 | 3.96 | 5.5 | 6.6 | 8.8 | 11.0 | 13.2 |
| pv string input data | |||||||
| Max. Input Power (kW) | 6.0 | 7.2 | 10.0 | 12.0 | 16.0 | 20.0 | 24.0 |
| Max. Input Voltage (V)*4 | 600 | ||||||
| MPPT Operating Voltage Range (V)*5 | 60 ~ 550 | ||||||
| Start-up Voltage (V) | 58 | ||||||
| Nominal Input Voltage (V) | 360 | ||||||
| Max. Input Current per MPPT (A)*6 | 20 | 20 | 20 | 20 | 32 / 16 | 32 / 32 | 32 / 32 |
| Max. Short Circuit Current per MPPT (A) | 26 | 26 | 26 | 26 | 48 / 24 | 48 / 48 | 48 / 48 |
| Number of MPPT Trackers | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of Strings per MPPT | 1 | 1 | 1 | 1 | 2 / 1 | 2 / 2 | 2 / 2 |
| ac output data (on-grid) | |||||||
| Nominal Output Power (kW) | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 |
| Nominal Apparent Power Output to Utility Grid (kVA) | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 |
| Max. AC Active Power (kW)*7*8 | 3.3 | 3.96 | 5.5 | 6.6 | 8.8 | 11.0 | 13.2 |
| Max. Apparent Power Output to Utility Grid (kVA)*7*8 | 3.3 | 3.96 | 5.5 | 6.6 | 8.8 | 11.0 | 13.2 |
| Max. Apparent Power from Utility Grid (kVA) | 7.0 | 7.0 | 8.8 | 8.8 | 16.5 | 16.5 | 16.5 |
| Nominal Output Voltage (V) | 220 / 230 / 240 | ||||||
| Output Voltage Range (V) | 170 ~ 280 | ||||||
| Nominal AC Grid Frequency (Hz) | 50 / 60 | ||||||
| AC Grid Frequency Range (Hz) | 45 ~ 55 / 55 ~ 65 | ||||||
| Max. AC Current Output to Utility Grid (A) | 15 | 18 | 25 | 30 | 40 | 50 | 60 |
| Max. AC Current From Utility Grid (A) | 32 | 32 | 40 | 40 | 75 | 75 | 75 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | ||||||
| Max. Total Harmonic Distortion | <3% | ||||||
| ac output data (back-up) | |||||||
| Back-up Nominal Apparent Power (kVA) | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 |
| Max. Output Apparent Power without Grid (kVA) | 3.3 (6.0, 10s) | 3.96 (7.2, 10s) | 5.5 (10.0, 10s) | 6.6 (12.0, 10s) | 8.8 (16.0, 10s) | 11.0 (20.0, 10s) | 13.2 (24.0, 10s) |
| Max. Output Apparent Power with Grid (kVA) | 7.0 | 7.0 | 8.8 | 8.8 | 16.5 | 16.5 | 16.5 |
| Max. Output Current without Grid (A) | 15 | 18 | 25 | 30 | 40 | 50 | 60 |
| Max. Output Current with Grid (A) | 32 | 32 | 40 | 40 | 75 | 75 | 75 |
| Nominal Output Voltage (V) | 220 / 230 / 240 | ||||||
| Nominal Output Frequency (Hz) | 50 / 60 | ||||||
| Output THDv (@Linear Load) | <3% | ||||||
| ac data (generator) | |||||||
| Nominal Apparent Power from AC generator (kVA) | 3.0 | 3.6 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 |
| Max. Apparent Power from AC generator (kVA) | 3.3 | 3.96 | 5.5 | 6.6 | 8.8 | 11.0 | 13.2 |
| Nominal Intput Voltage (V) | 220 / 230 / 240 | ||||||
| Input Voltage Range (V) | 170 ~ 280 | ||||||
| Nominal AC generator Frequency (Hz) | 50 / 60 | ||||||
| AC generator Frequency Range (Hz) | 45 ~ 55 / 55 ~ 65 | ||||||
| Max. AC Current From AC generator (A) | 32.0 | 32.0 | 40.0 | 40.0 | 50.0 | 54.5 | 54.5 |
| Nominal AC Current From AC generator (A) |
13.7 at 220V 13.1 at 230V 12.5 at 240V |
||||||
| efficiency | |||||||
| Max. Efficiency | 97.6% | ||||||
| European Efficiency | 96.2% | ||||||
| Max. Battery to AC Efficiency | 95.5% | ||||||
| MPPT Efficiency | 99.9% | ||||||
| protection | |||||||
| PV String Current Monitoring | Integrated | ||||||
| PV Insulation Resistance Detection | Integrated | ||||||
| Residual Current Monitoring | Integrated | ||||||
| PV Reverse Polarity Protection | Integrated | ||||||
| Anti-islanding Protection | Integrated | ||||||
| AC Overcurrent Protection | Integrated | ||||||
| AC Short Circuit Protection | Integrated | ||||||
| AC Overvoltage Protection | Integrated | ||||||
| DC Switch | Integrated | ||||||
| DC Surge Protection | Type III | ||||||
| AC Surge Protection | Type III | ||||||
| AFCI | Optional | ||||||
| Rapid Shutdown | Optional | ||||||
| Remote Shutdown | Integrated | ||||||
| general data | |||||||
| Operating Temperature Range (ºC) | -35 ~ +60 | ||||||
| Relative Humidity | 0 ~ 95% | ||||||
| Max. Operating Altitude (m) | 3000 | ||||||
| Cooling Method | Natural Convection Smart Fan Cooling |
||||||
| User Interface | LCD, WLAN + APP | ||||||
| Communication with BMS | CAN | ||||||
| Communication | RS485, WiFI + LAN + Bluetooth | ||||||
| Communication Protocols | Modbus-RTU, Modbus-TCP | ||||||
| Weight (kg) | 14.5 | 15.5 | 15.5 | 15.5 | 27.0 | 29.0 | 29.0 |
| Dimension (W × H × D mm) | 560 × 415 × 204 | 560 × 444.5 × 226 | |||||
| Topology | Non-isolated | ||||||
| Ingress Protection Rating | IP66 | ||||||
| Mounting Method | Wall Mounted | ||||||
| *1 The Li-lon battery usually contain two mainstream type: LFP and Ternary Lithium battery. | |||||||
| *2 When the PV input voltage is higher than 500V, the battery charging and discharging power will be gradually limited... | |||||||
| *3 When the PV input voltage is higher than 490V, the battery charging and discharging power will be gradually limited... | |||||||
| GoodWe-Single page-20250610-EN-V2.1. Information may be subject to change without notice during product improving. | |||||||
