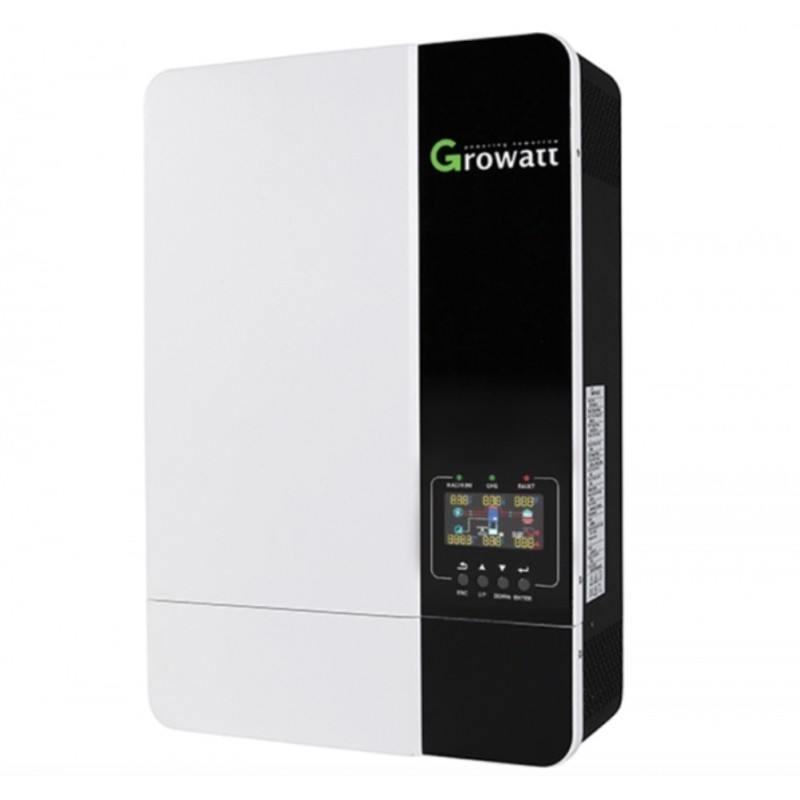

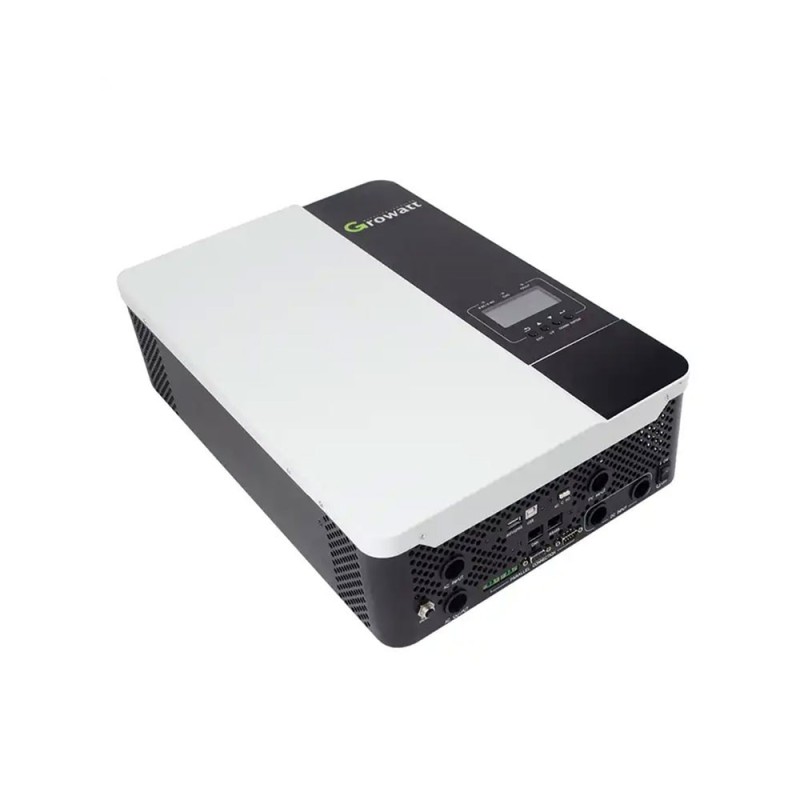

BASENGREEN Growatt SPF 5000 ES PV Off-Grid Solar Inverter

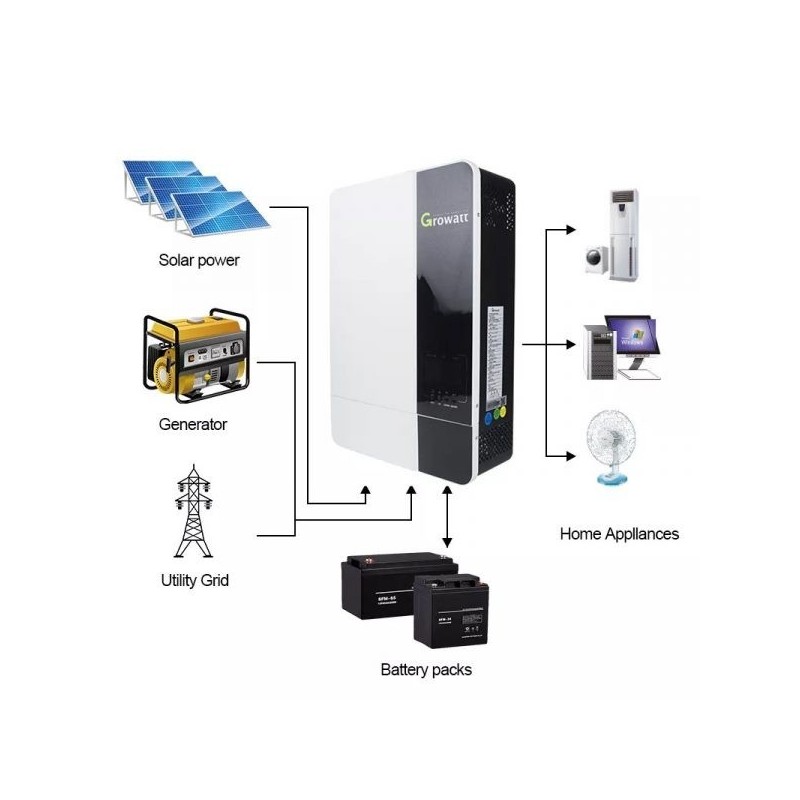

Three phase hybrid inverter ideal for home and small commercial systems. Its battery ready design can help reduce initial system investment, stunning IP65 protection level, more durable and flexible for installation, multiple programmable working modes, decide by yourself how to realize self-sufficiency and increase system self-consumption. And the EPS output can even provide backup supply during grid absence.
Off-grid inverter inverter for backup power and self-consuption application
- Integrated MPPT charge controller
- Equalization charging function
- Work with battery or without battery
- Maximum PV input voltage up to 450VDC
- Configurable grid or solar input priority
- Optional WIFI/ GPRS remote monitoring
- Support parallel operation for capacity expansion up to 30kW
- PV and Grid power the load jointly if PV energy unsufficient
- Flexibly schedule the Inverter charging and discharging time

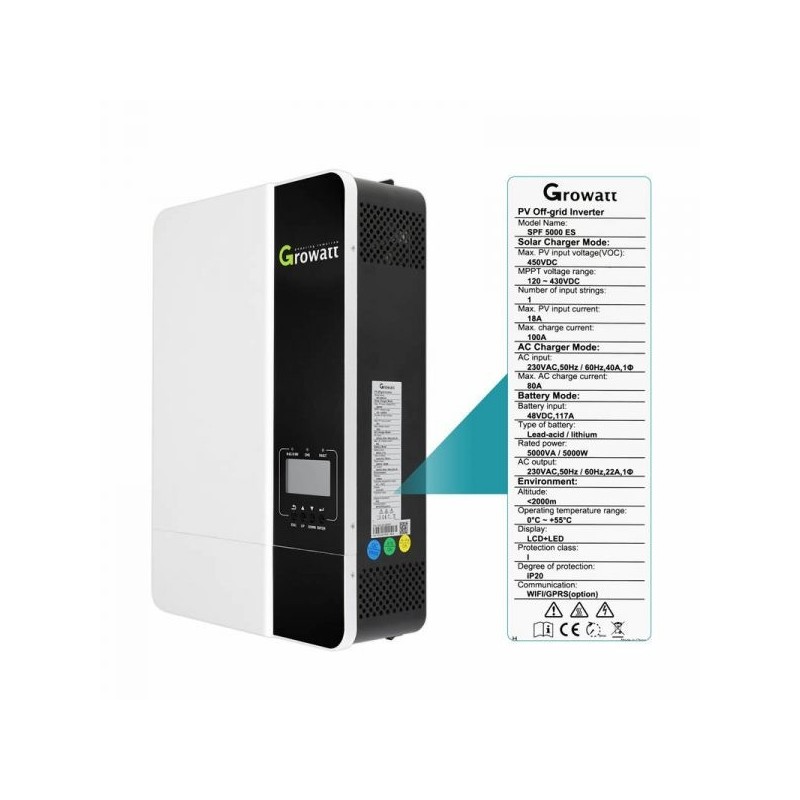

Technical Data
| Model | Growatt SPF 5000 ES |
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Rated Power | 5000VA/5000W |
| Parallel Capability | Yes, 6 units maximum |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 10000VA |
| Efficiency | 93% |
| Waveform | Pure sine wave |
| Maximum PV Array Power | 6000W |
| MPPT Range @ Operating Voltage | 120VDC ~ 430VDC |
| Number of Independent MPP Trackers/Strings Per MPP Tracker | 1/1 |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Solar Charge Current | 100A |
| AC Charge Current | 80A |
| AC Input Voltage | 230 VAC |

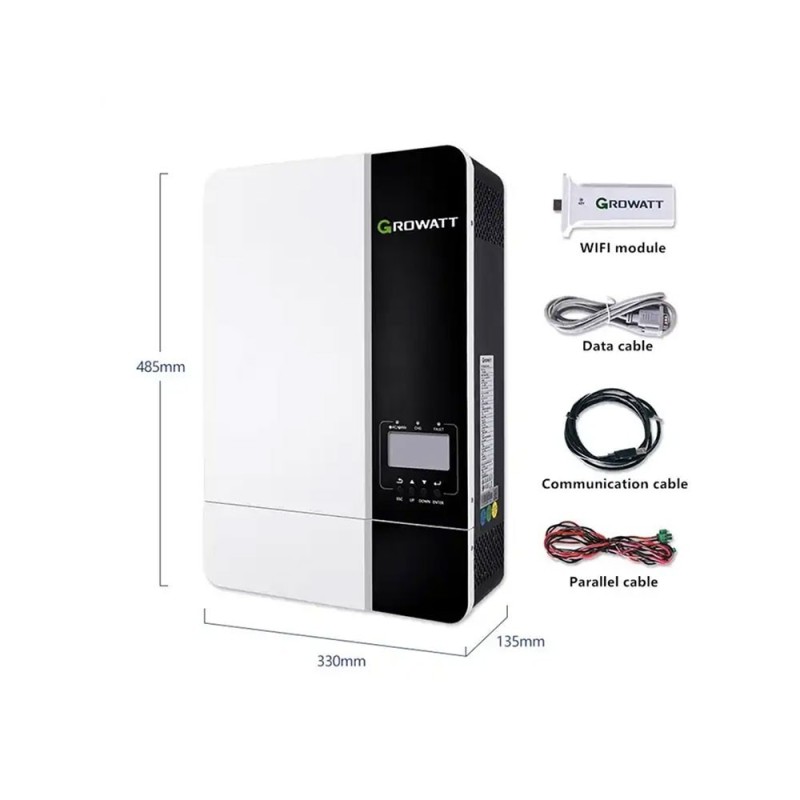

| Dimensions | 330x485x135mm | 12kg |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
