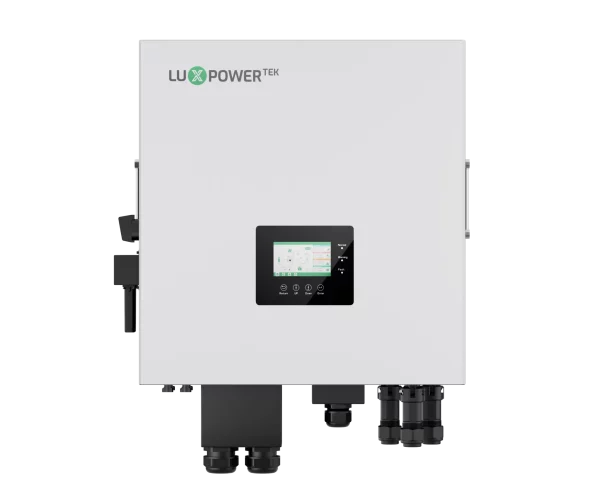

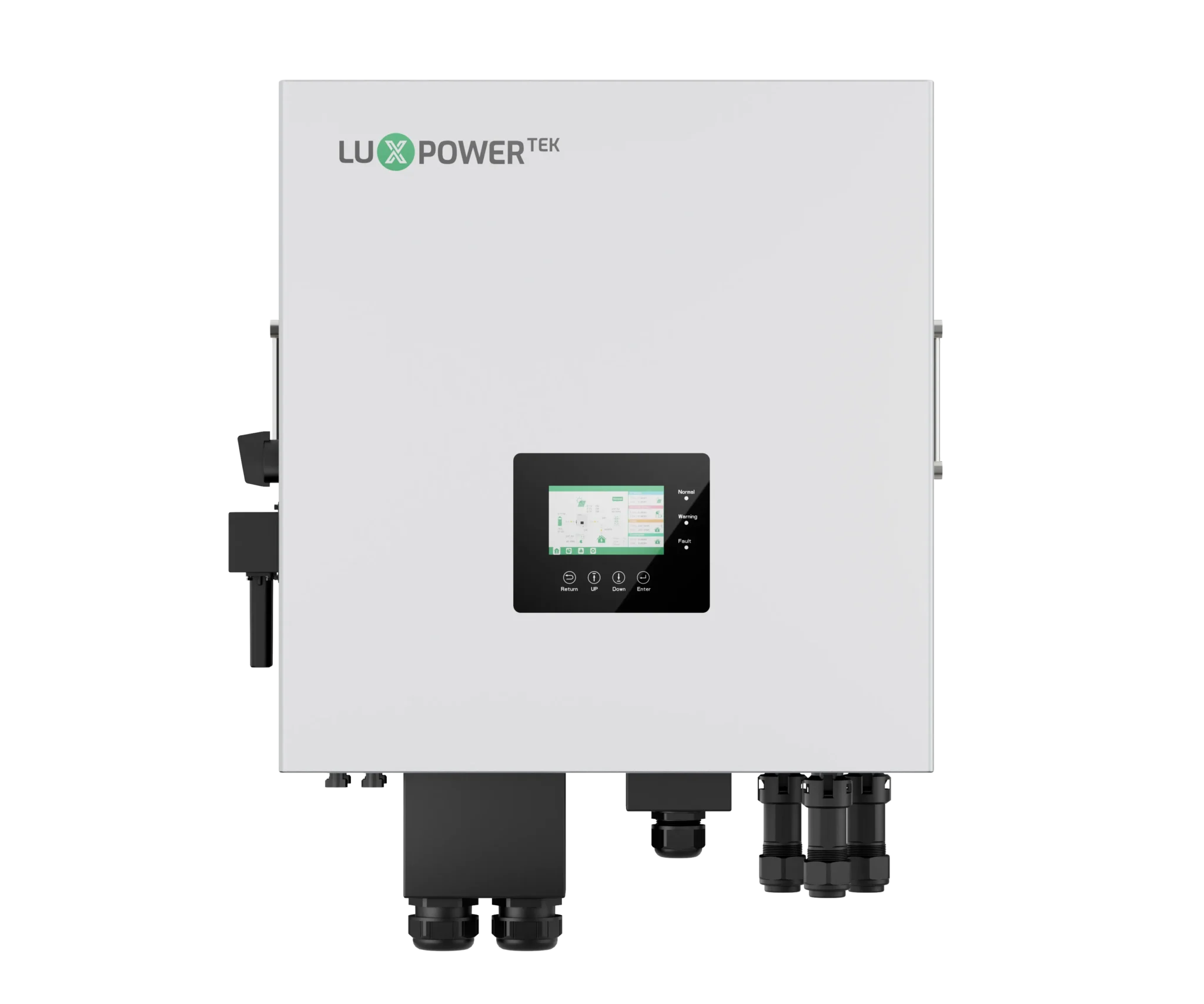

BASENGREEN Luxpower GEN-LB-EU 7-10K Hybrid Inverter
Our latest upgrade to the hybrid inverter series introduces cutting-edge features like a generator interface and AC coupling, making it even more versatile for larger power needs. Whether for residential, commercial, or industrial use, it seamlessly adapts to diverse settings, setting the standard for energy transformation.
- 2 MPPTs, Max. PV input 15kW
- Max. charging and discharging current: 210A
- Supports up to 10pcs in parallel for on/o grid
- Time of Use and weather optimization charge
for e-bill reduction - Separate port for
-Generator connection
▪ Auto generator control
▪ Support generator exercise
▪ Support generator boost function
-Or smart load connection and auto control
-Or AC coupling function
| INPUT (PV DC) | GEN-LB-EU 7K | GEN-LB-EU 8K | GEN-LB-EU 10K |
|---|---|---|---|
| Max. PV array power(W) | 12000 | 12000 | 15000 |
| Rated PV input voltage(V) | 360 | ||
| Number of independent MPPT inputs | 2/(2:2) | ||
| PV input voltage range(V) | 100~600 | ||
| MPPT voltage range(V) | 120~500 | ||
| Start-up voltage(V) | 140 | ||
| Max. PV input current per MPPT(A) | 25 | ||
| Battery | |||
| Max. PV short-circuit current input per MPPT(A) | 34 | ||
| Compatible battery type | Lithium-ion/Lead-Acid | ||
| Rated battery voltage(V) | 48 | ||
| Battery voltage range(V) | 40~60 | ||
| Max. charge/discharge current(A) | 146 | 167 | 210 |
| Max. charge/discharge power(W) | 7000 | 8000 | 10000 |
| Force wake up battery from PV function(Y/N) | YES | ||
| Gird | |||
| Rated AC voltage(V) | 230 | ||
| Rated AC frequency(Hz) | 50/60 | ||
| Rated AC output current(A) | 30.4 | 34.7 | 43.5 |
| Rated AC output power(W) | 7000 | 8000 | 10000 |
| Max. AC input power(W) | 15000 | ||
| PF | 0.99 (Adjustable from 0.8 leading to 0.8 lagging) | ||
| THDI | 3% | ||
| Max. continuous AC passthrough current(A) | 90 | ||
| UPS | |||
| Rated output power(W) | 7000 | 8000 | 10000 |
| Rated output voltage(V) | 230 | ||
| Rated output current(A) | 30.4 | 34.7 | 43.5 |
| Rated output frequency(Hz) | 50/60 | ||
| Surge power, duration | 2Pn, 0.5s | ||
| Switching time | 20ms | ||
| Wave form | Sine wave | ||
| THDV | 3% | ||
| Efficiency | |||
| MPPT efficiency | 99.9% | ||
| Max. efficiency@PV to grid | 97.5% | ||
| Max. efficiency@battery to grid | 94% | ||
| Max. charge/discharge efficiency | 94% | ||
| Protection | |||
| PV reverse polarity protection | YES | ||
| Over current/voltage protection | YES | ||
| Anti-islanding protection | YES | ||
| AC Short-circuit current protection | YES | ||
| Leakage current protection | YES | ||
| Ground fault monitoring | YES | ||
| Grid monitoring | YES | ||
| DC Switch | YES | ||
| AC/DC Surge protection Type III | YES | ||
| General | |||
| Dimensions(W*H*D) | 536*556*290mm/21.1*21.9*11.4inch | ||
| Weight | 42.64kg/94lbs | ||
| Ingress protection rating | IP65/NEMA 4X | ||
| Relative humidity | 0~100% | ||
| Operating environment temperature range(°C) | -25~60 | ||
| Storage temperature range(°C) | -25~60 | ||
| Display & Communication interface | Touch color screen, RS485/Wifi/CAN | ||
| Warranty | 5 years | ||
| Cooling method | Smart cooling | ||
| Topology | Transformer-less | ||
| Altitude | <2000m | ||
| Noise emission(typical) | <50dB | ||
| Standard & Certification | G99, G100, NRS 097 | ||
