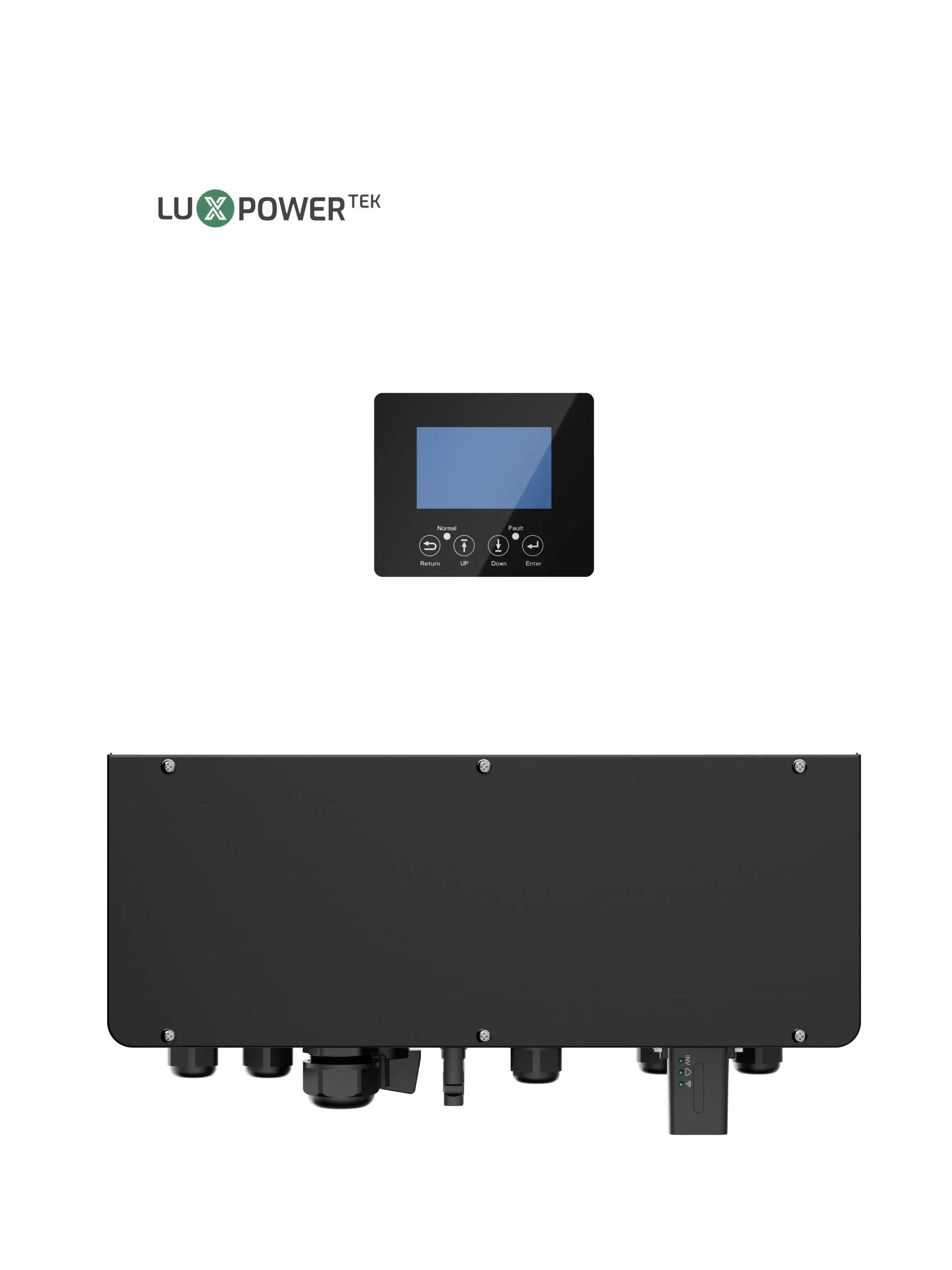

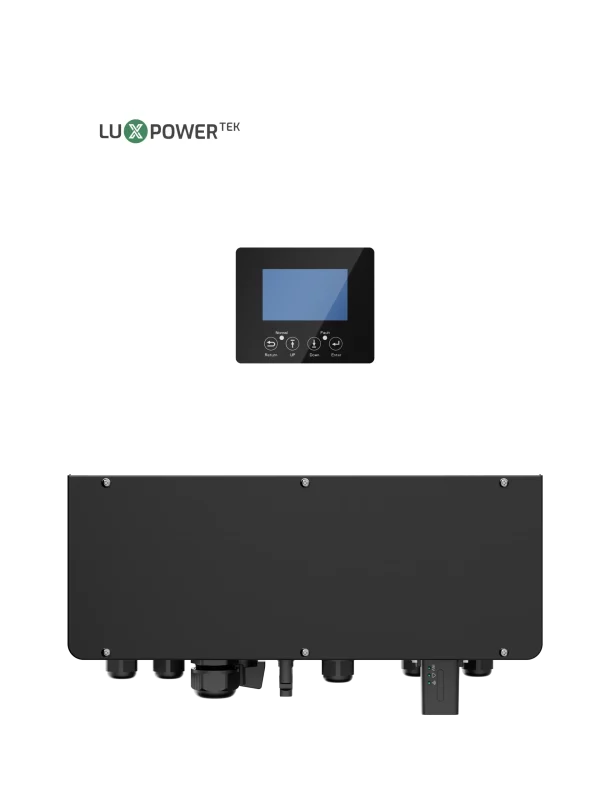

| DATASHEET GEN2-LB-EU 3-6K (Single-Phase) HYBRID SERIES |
| Model |
GEN2-LB-EU 3K |
GEN2-LB-EU 3.6K |
GEN2-LB-EU 4K |
GEN2-LB-EU 4.6K |
GEN2-LB-EU 5K |
GEN2-LB-EU 6K |
| Input (PV DC) |
| Max. PV input power (W) |
6600 |
7000 |
9000 |
9600 |
| Rated PV input voltage (V) |
360 |
| Number of independent MPPT inputs |
2/(1:1) |
| PV input voltage range (V) |
100~530 |
| MPPT voltage range (V) |
150~425 |
| Start-up voltage (V) |
100 |
| Max. PV input current per MPPT (A) |
18 |
| Max. PV short-circuit current input per MPPT (А) |
32 |
| Battery |
| Compatible battery type |
Lithium-ion/Lead-Acid |
| Rated battery voltage (V) |
48 |
| Battery voltage range (V) |
40~60 |
| Max. charging/discharging current (A) |
80/80 |
80/80 |
80/80 |
96/96 |
125/140 |
125/140 |
| Max. charging/discharging power (W) |
3000 |
3600 |
4000 |
4600 |
5000 |
6000 |
| Force wake up battery from PV function |
YES |
| Grid |
| Rated AC voltage (V) |
230 |
| Rated AC frequency (Hz) |
50/60 |
| Rated AC output current (A) |
13 |
15.7 |
17.4 |
20 |
21.7 |
26 |
| Rated AC output power (W) |
3000 |
3600 |
4000 |
4600 |
5000 |
6000 |
| Max. AC input power (W) |
3000 |
3600 |
4000 |
4600 |
5000 |
6000 |
| PF |
0.99(Adjustable from 0.8 leading to 0.8 lagging) |
| THDI |
3% |
| Max. continuous AC passthrough current(A) |
52.2 |
| GEN |
| Rated GEN voltage (V) |
230 |
| Rated GEN frequency (Hz) |
50/60 |
| Rated GEN input current (A) |
40 |
| Rated GEN input power (W) |
9200 |
| Rated GEN current of BYPASS relays (A) |
60 |
| UPS |
| Rated output power (W) |
3000 |
3600 |
4000 |
4600 |
5000 |
6000 |
| Rated output voltage (V) |
230 |
| Rated output current (A) |
13 |
15.7 |
17.4 |
20 |
21.7 |
26 |
| Rated output frequency (Hz) |
50/60 |
| Surge power, duration |
2Pn, 0.5s |
| Switching time (UPS) |
20ms |
| Wave form |
Sine wave |
| THDV |
5% |
| Efficiency |
| MPPT efficiency |
99.9% |
| Max. efficiency |
97.3% |
| Max. charge / discharge efficiency |
94.5% |
| Protection |
| Over current/voltage protection |
YES |
| Anti-islanding protection |
YES |
| AC Short-circuit current protection |
YES |
| Leakage current protection |
YES |
| Ground fault monitoring |
YES |
| Grid monitoring |
YES |
| DC switch |
YES |
| DC surge protection |
Type III |
| AC surge protection |
Type III |
| General |
| Dimensions (W*H*D) |
528*440*220mm / 20.8*17.4*8.7 in |
| Weight |
25kg / 55 lbs |
| Ingress protection rating |
NEMA4X/ IP66 |
| Operating environment temperature range (°C) |
-25~60 |
| Storage temperature range (°C) |
-40~65 |
| Relative humidity |
0~100% |
| Display & Communication interface |
LCD+RGB, RS485/Wi-Fi/CAN |
| Warranty |
5/10 years |
| Cooling method |
Smart cooling |
| Topology on AC side |
Transformer-less |
| Topology on Battery side |
Transformer |
| Altitude(m) |
2000 |
| Noise emission(typical) |
50dB |
| DC connection |
MC4 |
| AC connector |
YES |
| Standards & Certification |
G99, G100, CEI 0-21, RD 1699, NTS, UNE 217001, NRS 097 |
