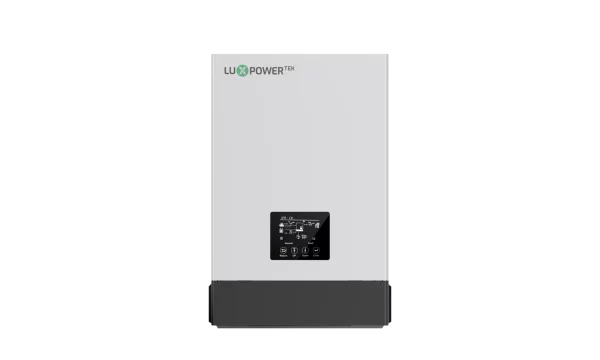

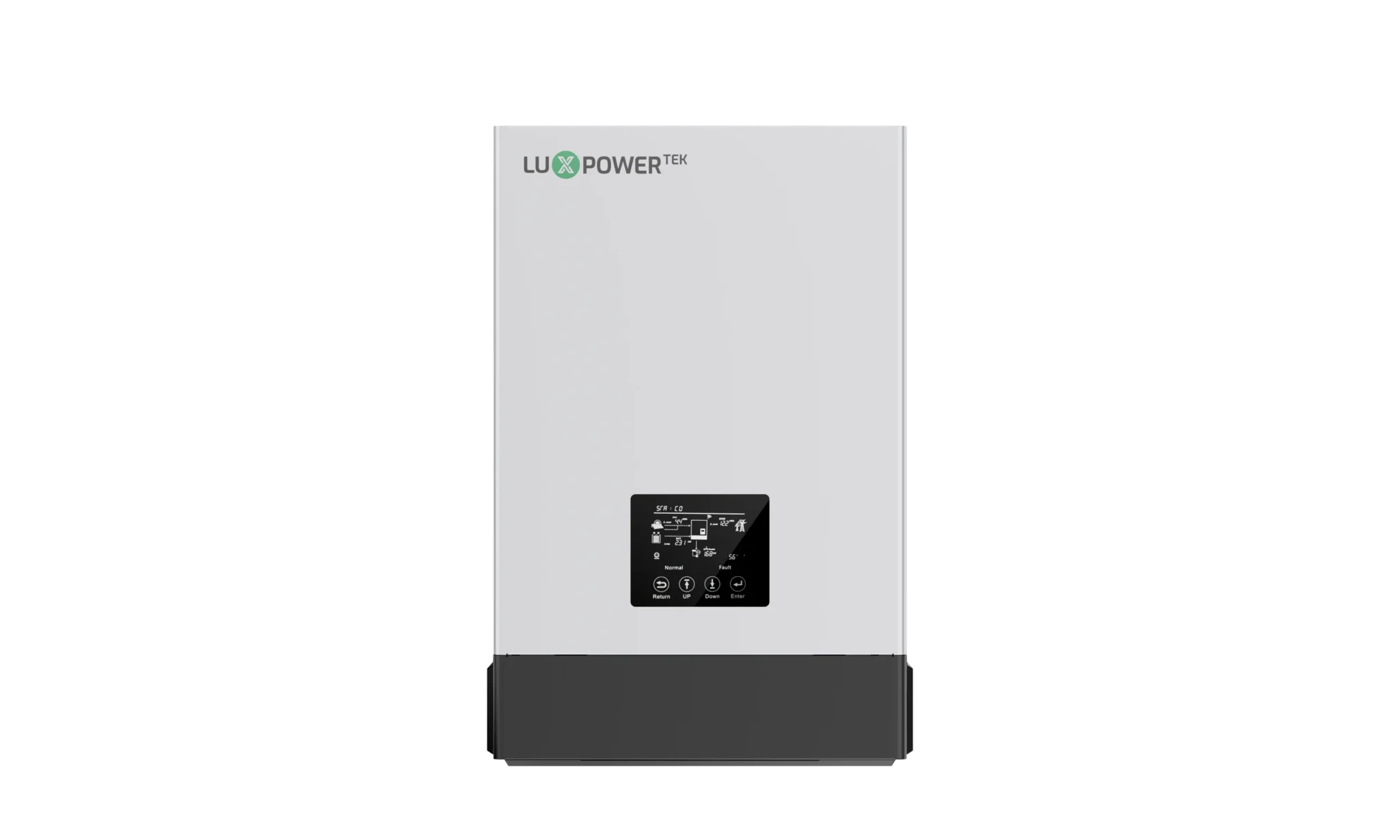

BASENGREEN Luxpower SNA 3-6K Single Phase Off grid Inverter
The SNA 5/6k single-phase inverter: your trusted answer to unstable or limited grid power. The ultimate pick for off-grid applications, empowering energy independence. Seamlessly switching between on and off-grid modes, it’s tailored for remote regions and unstable power scenarios, enabling direct off-grid usage.
- Off-grid seamless switching
- 2 MPPTs, Max. PV input: 9.6kW
- Wide PV input voltage range: 100~500V
- Supports up to 16pcs in parallel
- Max. charging and discharging current 140A
- Dedicated Port: Supports generator, AC coupling or
- smart load management for enhanced stability
- 24/7 real-time monitoring via LUX app
- with worry-free updates
| Input (PV DC) | SNA 3000W | SNA 4000W | SNA 5000W | SNA 6000W |
|---|---|---|---|---|
| Max. PV input power(W) | 6000 (3000/3000) | 8000 (4000/4000) | 8000 (4000/4000) | 9600 (4800/4800) |
| Rated PV input voltage(V) | 320 | |||
| Number of independent MPPT inputs | 2/(1:1) | |||
| PV input voltage range(V) | 100~500 | |||
| MPPT voltage range(V) | 120~385 | |||
| Start-up voltage(V) | 100 | |||
| Max. PV input current per MPPT(A) | 17/17 | |||
| Max. PV short-circuit current input per MPPT(A) | 25/25 | |||
| Battery | ||||
| Compatible battery type | Lithium-ion/Lead-Acid | |||
| Rated battery voltage(V) | 48 | |||
| Battery voltage range(V) | 38.4~60 | |||
| Max. charge/discharge current(A) | 70/70 | 90/90 | 110/110 | 140/140 |
| Max. charge/discharge power(W) | 3000 | 4000 | 5000 | 6000 |
| Recommend capacity of battery per inverter | >100AH | >200AH | >200AH | >200AH |
| Force wake up battery from PV function | YES | |||
| Force wake up battery from Grid function | YES | |||
| Grid | ||||
| Rated AC voltage(V) | 230 | |||
| Rated AC frequency(Hz) | 50/60 | |||
| Rated AC output current(A) | 13.5 | 17.5 | 22 | 26.5 |
| Rated AC output power(W) | 3000 | 4000 | 5000 | 6000 |
| Max. AC input power(W) | 3000 | 4000 | 5000 | 6000 |
| PF | 0.99 (Adjustable from 0.8 leading to 0.8 lagging) | |||
| THDI | <5% | |||
| Max. continuous AC passthrough current(A) | 35 | |||
| UPS | ||||
| Rated output power(W) | 3000 | 4000 | 5000 | 6000 |
| Rated output voltage(V) | 230 | |||
| Rated output current(A) | 13.5 | 17.5 | 22 | 26.5 |
| Rated output frequency(Hz) | 50/60 | |||
| Surge power, duration | 2Pn, <5s | |||
| Switching time | <10ms@Single/<20ms@Parallel | |||
| Wave form | Sine wave | |||
| THDV | 3% | |||
| Efficiency | ||||
| Max. MPPT efficiency | 99.9% | |||
| Max. efficiency | 93.0% | |||
| Max. charge efficiency | 93.0% | |||
| Max. discharge efficiency | 93.0% | |||
| Protection | ||||
| Over current/voltage protection | YES | |||
| AC Short-circuit current protection | YES | |||
| Grid monitoring | YES | |||
| AC Surge protection | Type III | |||
| Battery reverse polarity protection | YES | |||
| General | ||||
| Dimensions(W*H*D) | 330*505*135mm/13*19.9*5.3inch | |||
| Weight | 14.5kg/32lbs | |||
| Ingress protection rating | IP20 | |||
| Operating environment temperature range(°C) | 0~50 | |||
| Storage temperature range(°C) | -15~60 | |||
| Relative humidity | 5%~95% | |||
| Display & Communication interface | LCD+LED, RS485/Wi-Fi/CAN | |||
| Warranty | 2 years | |||
| Cooling method | Smart Cooling | |||
| Topology | Transformer-less | |||
| Altitude | <2000m | |||
| Noise emission(typical) | <50dB | |||
| Standards & Certification | IEC 62109-1, IEC 61000, IEC62040/EN62040, IEC62109, NRS 097-2-1 | |||
