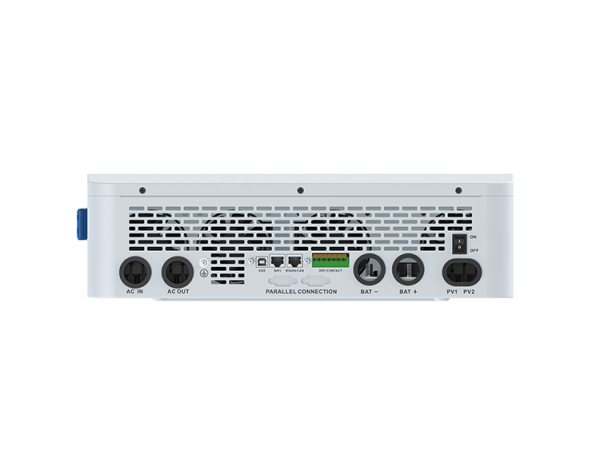

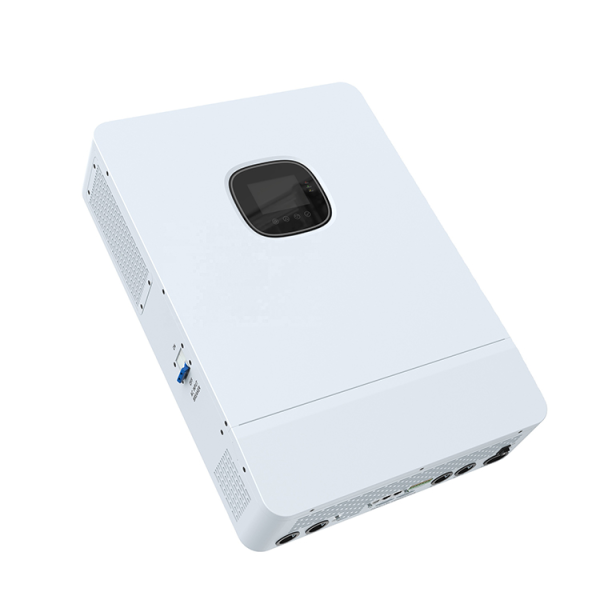

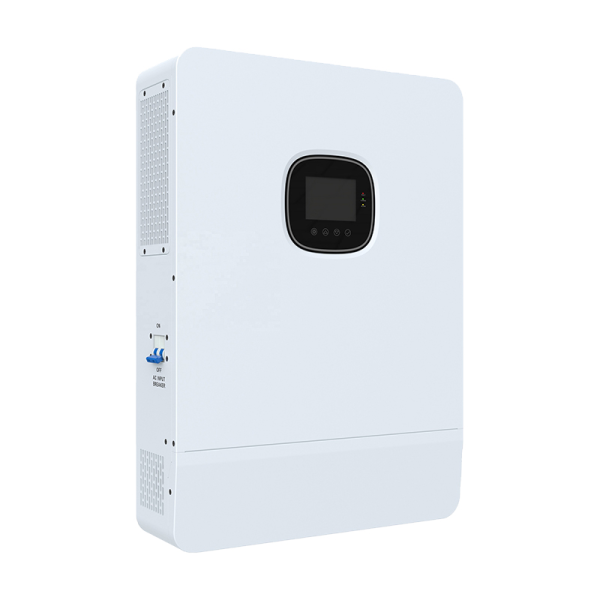

BASENGREEN SRNE SPI-8K-S Single Phase Off Grid Inverter

Industry attributes

Output Type	Single Phase
Inverter efficiency	99.9%

Other properties

Packaging and Shipping Information

Packaging Details	Polywood Pallet + Standard Carbon Box
Sales Unit	Single product
Single product packaging size	70X50X20 cm
Gross weight of single product	25.000 kg

Modell	SPI-8K-U	SPI-10K-U	Can be set
Inverter output
Rated output power	8,000W	10,000W
Maximum peak power	16,000W	20,000W
Rated output voltage	120/240Vac (Split Phase/Single Phase)		Y
Motor load capacity	5 HP	6HP
Rated AC frequency	50/60 Hz		Y
Waveform	Pure sine wave
Switching time	10 ms (typical)
Parallel capacity	/
Battery
Battery Type	Lithium-ion/Lead-acid/User-defined		Y
Rated battery voltage	48Vdc
Voltage range	40 ~ 60V DC		Y
Maximum MPPT charging current	200A		Y
Maximum power supply/generator charging	100A	120A	Y
Maximum hybrid charging current	180A	200A	Y
Photovoltaic input
Number of MPPT Trackers	2
Maximum PV array power	11000W
Maximum input current	22/22A
Maximum open circuit voltage	500 V DC
MPPT voltage range	125 ~ 425 V DC
Utility/Generator Input
Input voltage range	90 ~ 140 volts AC
Frequency range	50/60Hz
Bypass overload current	63A
efficiency
MPPT tracking efficiency	99.90%
size	92%
generally
Protection	620435130mm(21.40.4ft)
weight	20 kg (44 lbs)	21 kg (46.3 lbs)
Operating temperature range	IP20, indoor only
humidity	-10 ~ 55 ℃, > 45 ℃ derating
Cooling method	-25 °C ~ 60 °C
Warranty	Internal fan
Bypass overload current	2 years
communicate
Embedded Interface	RS485/CAN/USB/Dry contact		Y
External module (optional)	Wireless network/GPRS		Y
Certification
Safety	IEC62109-1，IEC62109-2，UL1741
RoHs	Yes
EMC	EN61000-6-3 EN61000-6-1, FCC 15 Class B
