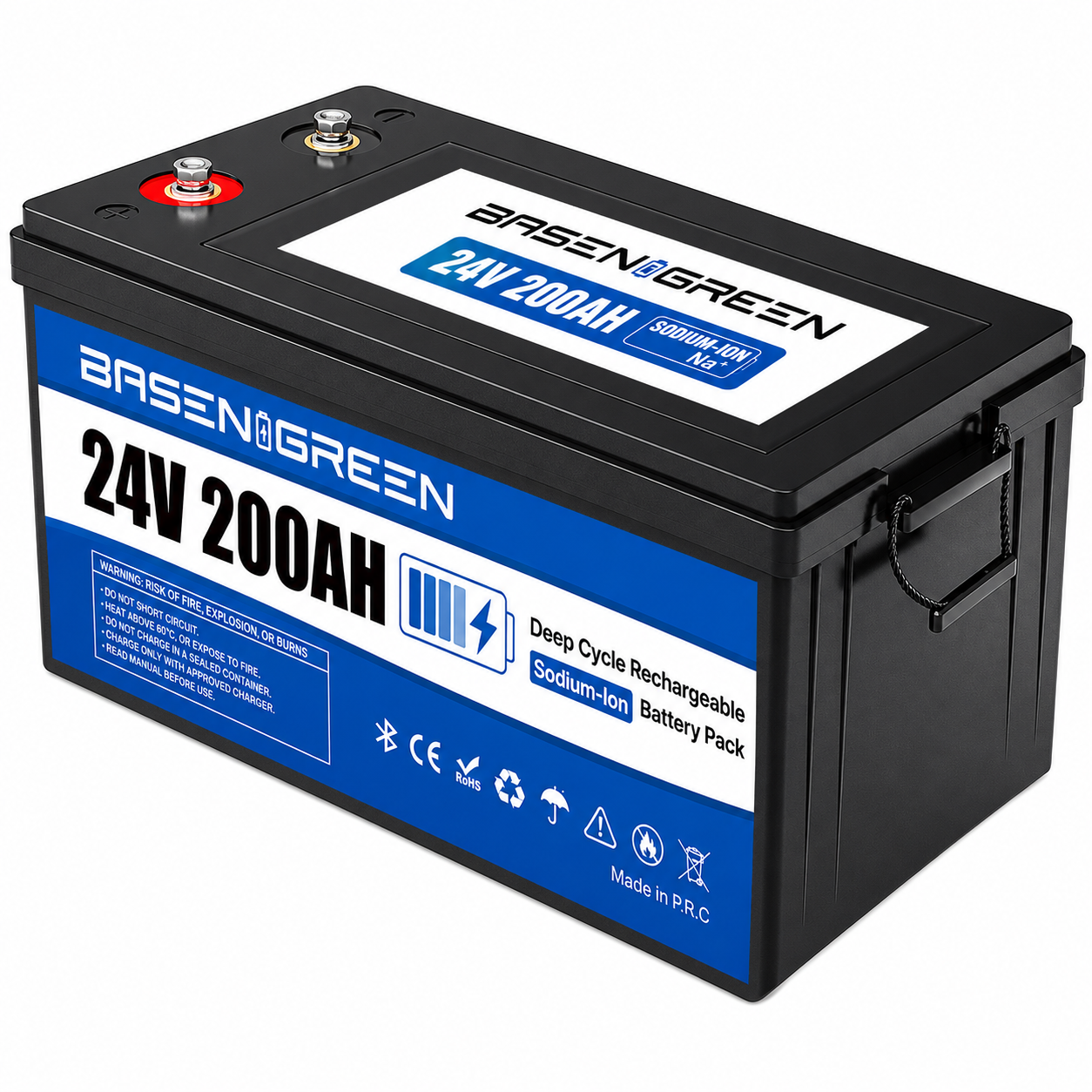

BG-24200N-JK Sodium-Ion Battery
The BASENGREEN BG-24200N-JK is a 24V 200Ah sodium-ion battery for RV, off-grid and backup-power systems that need dependable low-temperature performance. It provides 4.8kWh nominal energy, supports up to 200A charge and discharge current, and uses a JK BMS with Bluetooth monitoring and active balancing.
Key Features
- 4.8kWh nominal energy: 24V, 200Ah sodium-ion battery pack.
- Cold-climate operation: discharge from -30°C to 60°C and charge from -10°C to 60°C.
- High-current capability: up to 200A maximum charge and discharge current.
- Smart JK BMS: Bluetooth monitoring and active balancing for convenient battery management.
- Lead-acid replacement settings: standard inverter window 20.0–29.2V, configurable low-voltage cut-off at 17.0V, and BMS undervoltage protection at 16.0V.
Technical Specifications
| Model | BG-SD24-200 |
|---|---|
| Product Model | BG-24200N-JK |
| Battery Chemistry | Sodium-Ion |
| Nominal Energy | 4.8kWh |
| Capacity | 200Ah |
| Nominal Voltage | 24V |
| Operating Voltage Range | 17–31.6V |
| Maximum Charge & Discharge Current | 200A |
| Discharge Temperature | -30°C to 60°C |
| Charge Temperature | -10°C to 60°C |
| BMS | JK BMS with Bluetooth monitoring and active balancing |
| Standard Inverter Window | 20.0–29.2V |
| Configurable Inverter Low-Voltage Cut-Off | 17.0V |
| BMS Undervoltage Protection | 16.0V |
| Dimensions (W × D × H) | 635 × 244 × 218 mm |
| Net Weight | 44.5 kg |
| Typical Applications | RV, off-grid power, backup power |
For inverter compatibility, configure voltage settings according to the battery and inverter manuals before installation.
