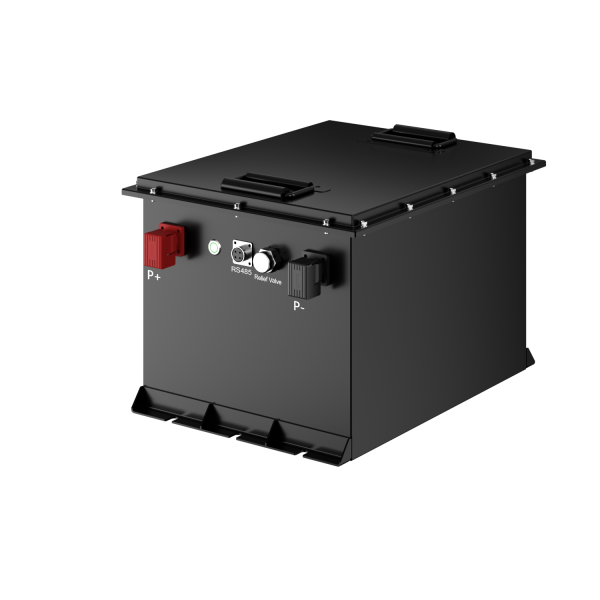

BR-GC Golf Cart LiFePO₄ Battery
Available Models: 36V 105Ah / 48V 105Ah / 72V 105Ah
Product Overview
The BR-GC Golf Cart LiFePO₄ Battery is designed for electric golf carts and light electric vehicles.
It uses high-quality prismatic LiFePO₄ cells with an intelligent BMS system,
delivering strong acceleration, long driving range, and superior safety.
Features
Performance
200A BMS,
larger current support!
Duration

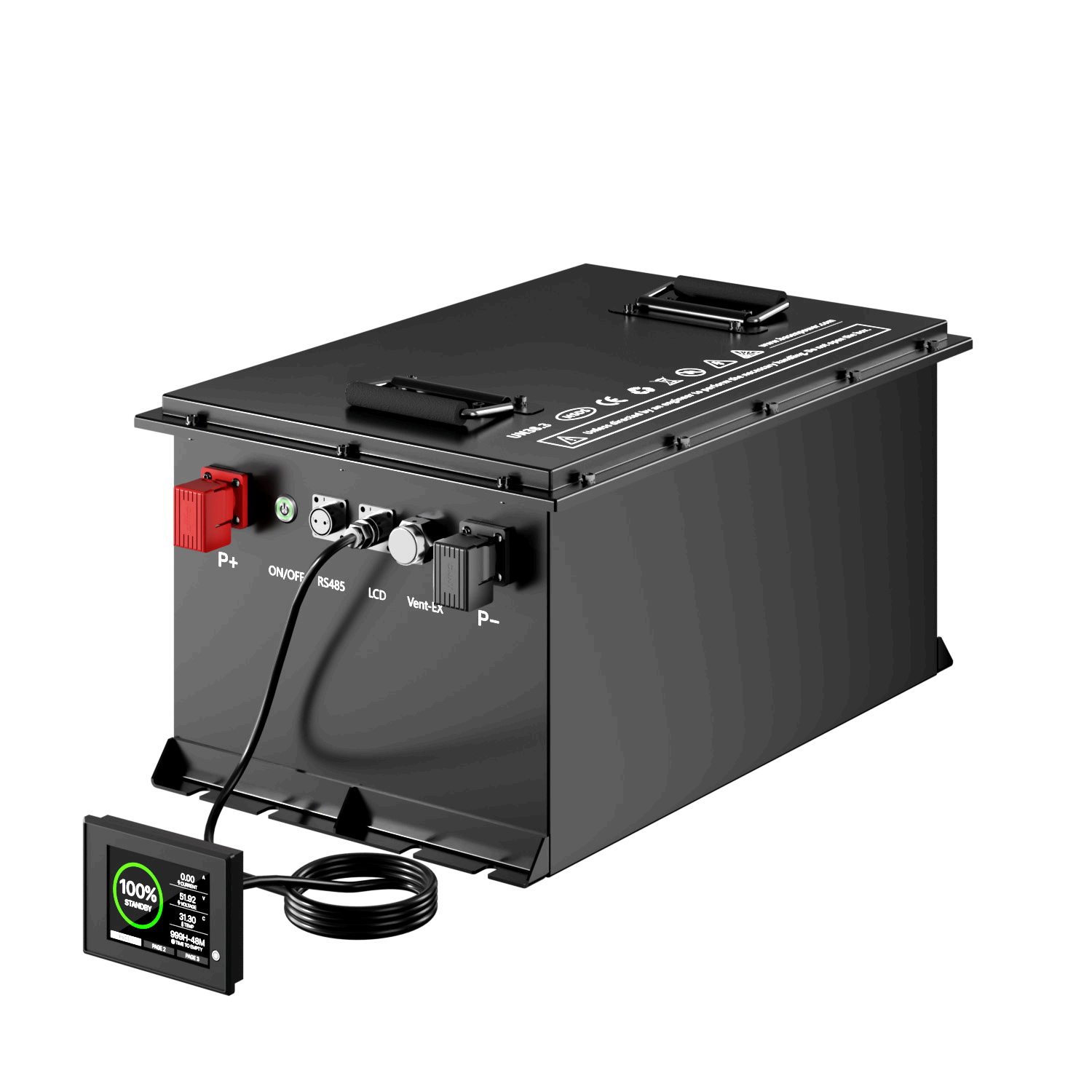

2.8-Inch Touch Screen
58.4V 18A LiFePO₄ fast charger
Protections
Over-Charge / Discharge
Over-Current High/Low Temperatures Short-Circuiting,Etc
Durability
4000+ Cycles
Weight 50% Lighter Than Lead-Acid Battery
APP
Mobile App To Control The
Battery (Soc) In Real Time.
| Model | 36V105AH | 48V105AH | 72V105AH |
|---|---|---|---|
| Rated Voltage (V) | 38.4V | 51.2V | 76.8V |
| Rated Capacity (Ah) | 105AH | 105AH | 105AH |
| Rated Energy (Wh) | 4034WH | 5376WH | 8064WH |
| Combination Method | 1P12S | 1P16S | 1P24S |
| Protection Level | IP65 | IP65 | IP65 |
| Standard Display Screen | Optional | Optional | Optional |
| Dimensions (L×W×H mm) | 415 × 325 × 265 | 490 × 325 × 265 | 640 × 325 × 265 |
| Net Weight (KG) | 42KG | 51KG | 72KG |
| Cycle Life | ≥4000 @ 25℃ | ≥4000 @ 25℃ | ≥4000 @ 25℃ |
| Operating Voltage Range (V) | 32.4V~43.8V | 43.2V~58.4V | 64.8V~87.6V |
| Charge Current (A) | 100A | 100A | 100A |
| Discharge Current (A) | 200A | 200A | 200A |
| Charge Operating Temperature Range (℃) | 0℃～45℃ | 0℃～45℃ | 0℃～45℃ |
| Discharge Operating Temperature Range (℃) | 20~55℃ | 20~55℃ | 20~55℃ |
