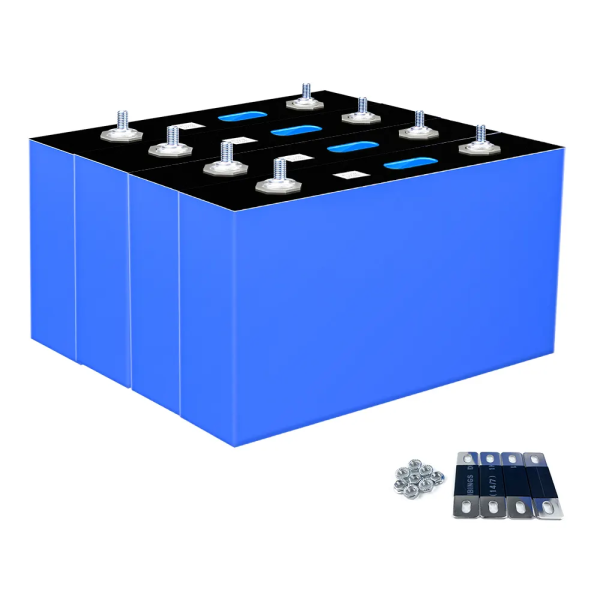

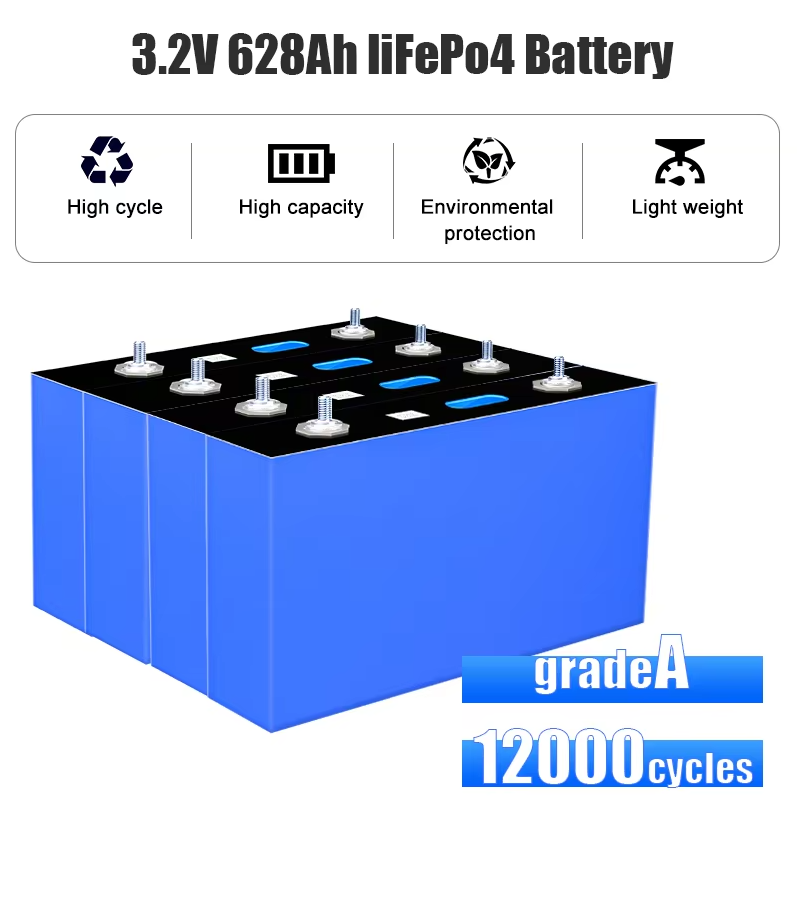

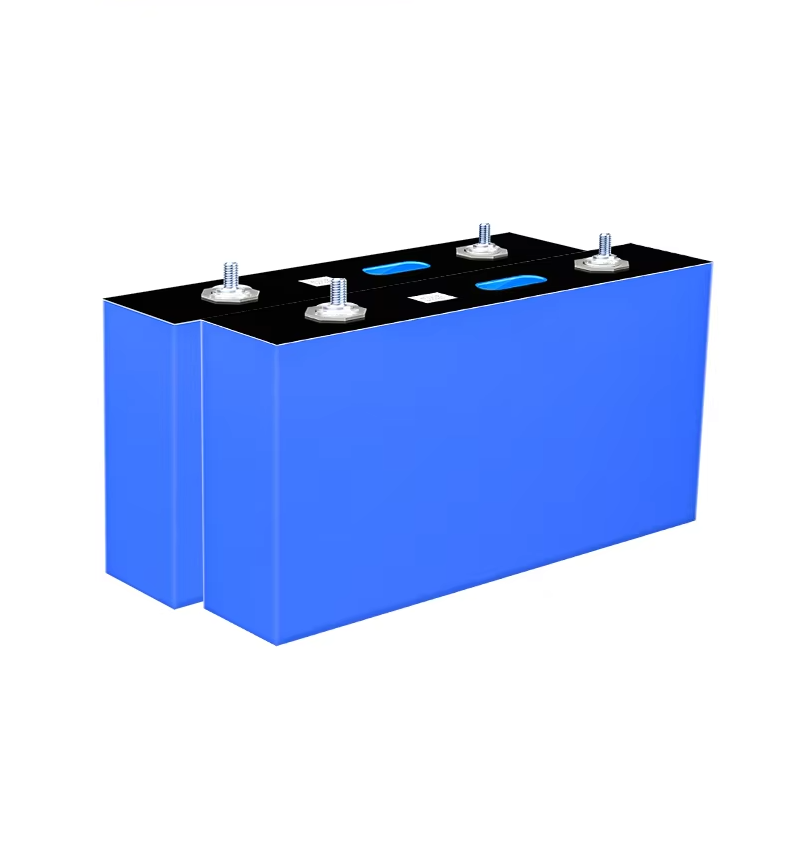

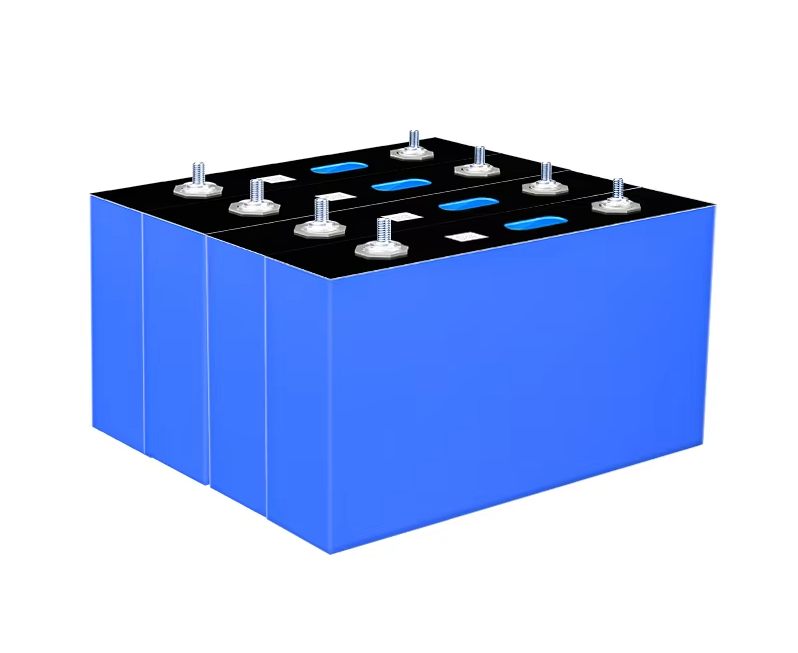

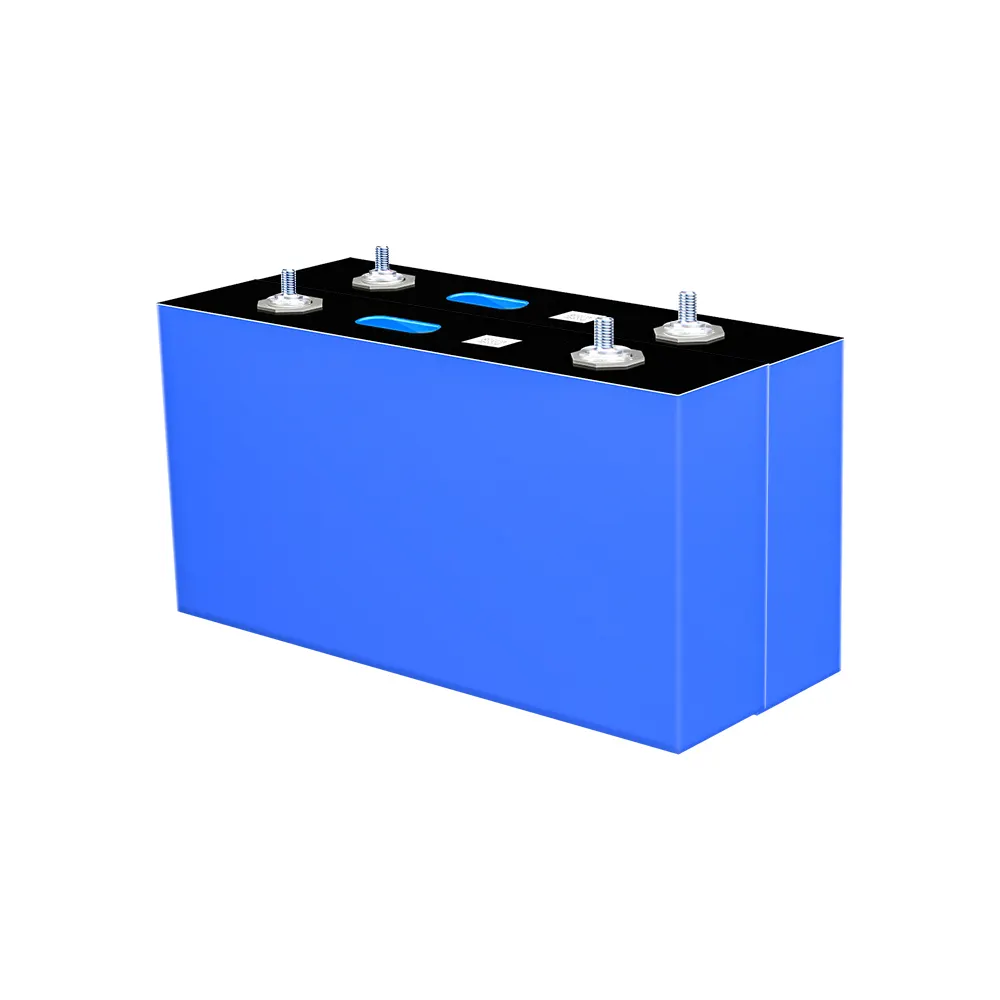

EVE MB56 3.2V 628Ah High Capacity Solar Wind Energy System Home Appliances
Industry attributes
| Battery Specifications | EVE-MB560 |
| application | Toys, Power Tools, Household Products, Consumer Electronics, Boats, Golf Carts, Submarines, Electric Bicycles/Motorcycles, Electric Wheelchairs, Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts |
Other properties
| Cycle life | 8000 cycles |
| Cathode Materials | Lithium Iron Phosphate |
| model | LF304 |
| Operating temperature (°C) | -20 ~ 60 ℃ |
| brand | EVE |
| weight | 11500g ± 300g |
| country of origin | China |
|
Battery Type
|
Lifepo4 Battery |
| capacity | 628Ah |
| Nominal voltage | 3.2V |
| Cycle life | 8000 cycles |
|
Charging Current
|
0.5c (adjustable) |
| Maximum discharge current | 1C |
|
Features
|
Long cycle life |
| OEM/ODM |
Acceptable
|
|
usage
|
Electronic devices
|
|
Battery size
|
352.3*71.7 * 207.2mm
|
Packaging and Shipping Information
| Sales Unit | Single product |
| Single product packaging size | 30X30X30 cm |
| Gross weight of single product | 8.000 kg |
Warning/Disclaimer
- This product has obtained relevant product certifications/licenses in some countries/regions.

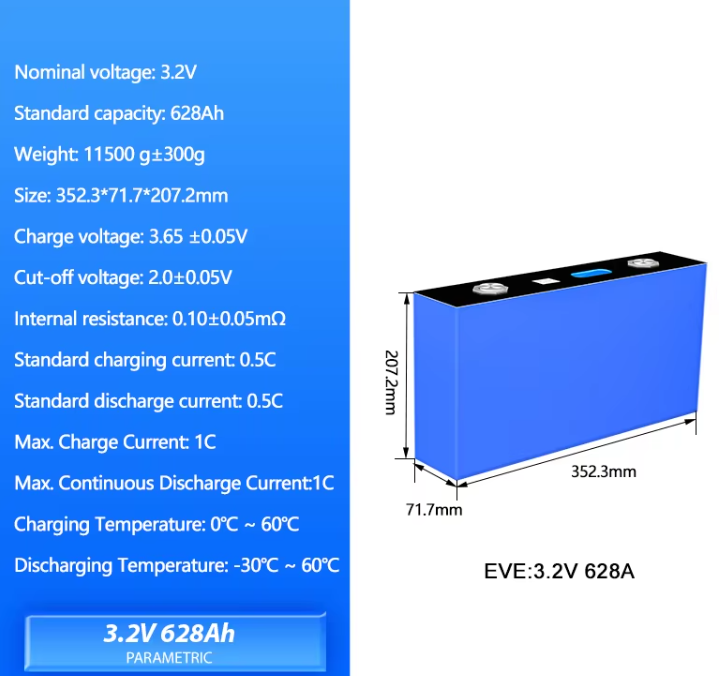

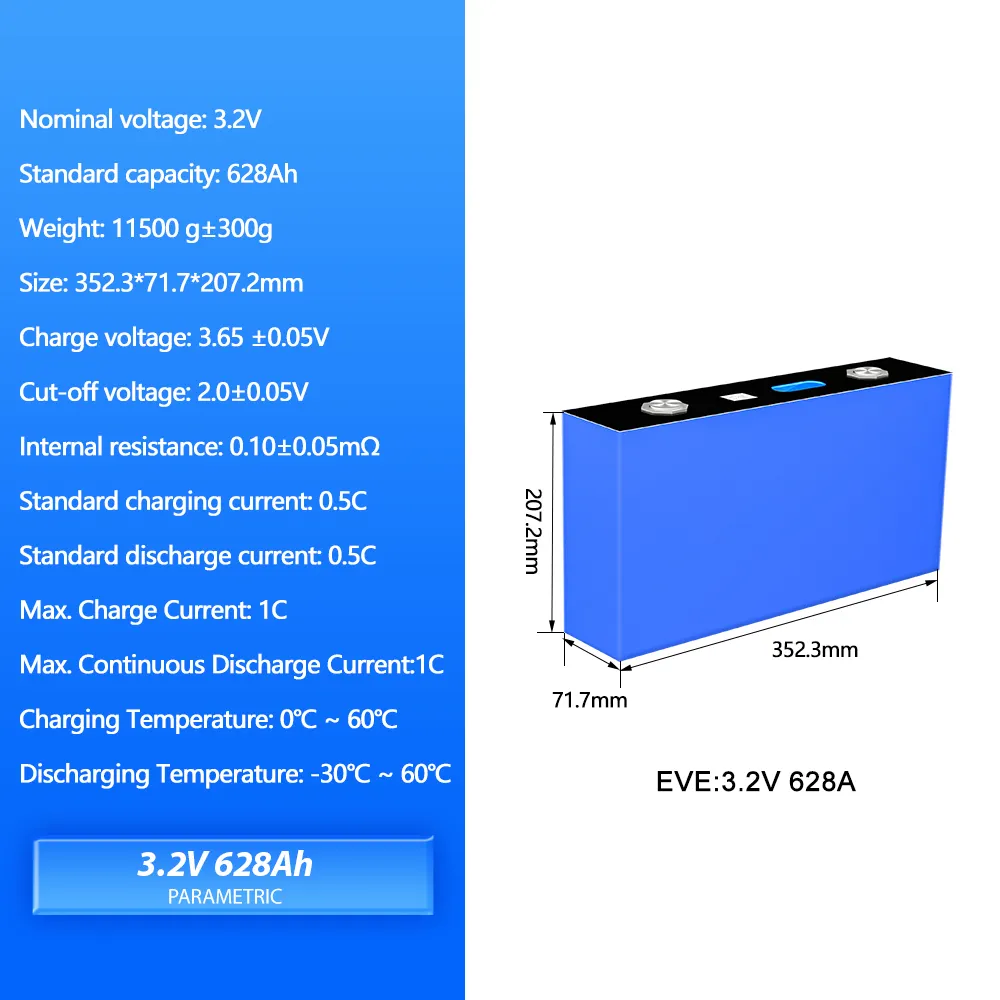

Specification
|
Model
|
EVE-MB560
|
|
Standard capacity
|
628Ah
|
|
Standard voltage
|
3.2V
|
|
Charge cut-off voltage
|
3.65V
|
|
Discharge cut-off voltage
|
2.5 VT >0 ℃
2.0V T ≤ 0 ℃ |
|
Standard charging current
|
0.5C
|
|
Maximum continuous charging current
|
1C
|
|
Standard discharge current
|
0.5C
|
|
Maximum discharge current
|
1C
|
|
Battery internal resistance (1KHz)
|
0.1 mΩ ± 0.05 mΩ
|
|
Monthly self-discharge
|
≤3.5%
|
|
Operating temperature (charging)
|
0~60℃
|
|
Operating temperature (discharge)
|
-30℃~60℃
|
|
Battery weight
|
11500 g ± 300 g
|
|
Battery size
|
Height: 207.2mm ± 0.5mm
Length: 352.3 mm ± 0.5 mm
Thickness: 71.7mm ± 0.5mm
Center distance between poles: 180.0 mm ± 0.3 mm |
|
Cell cycle
|
≥ 8000 cycles
|
