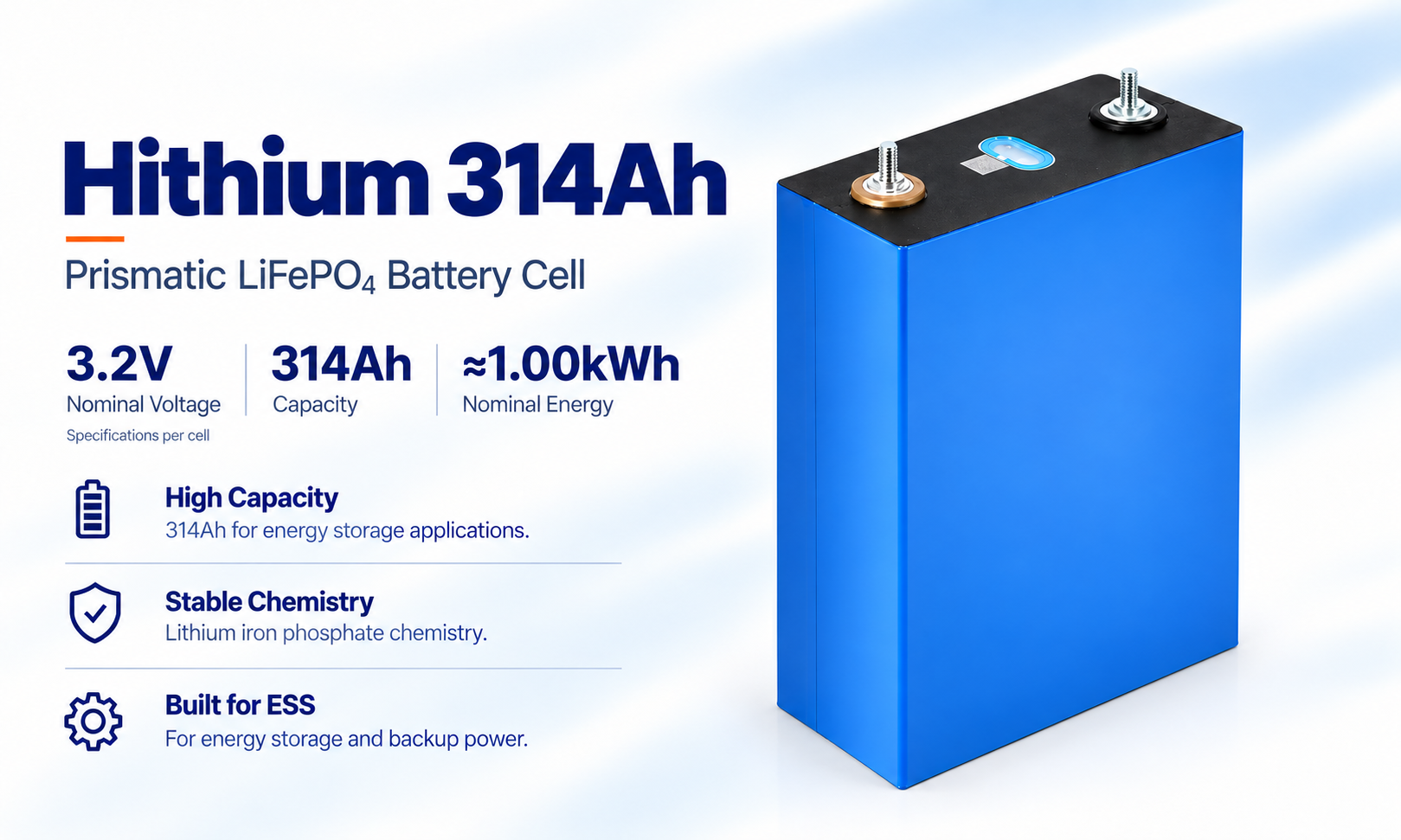

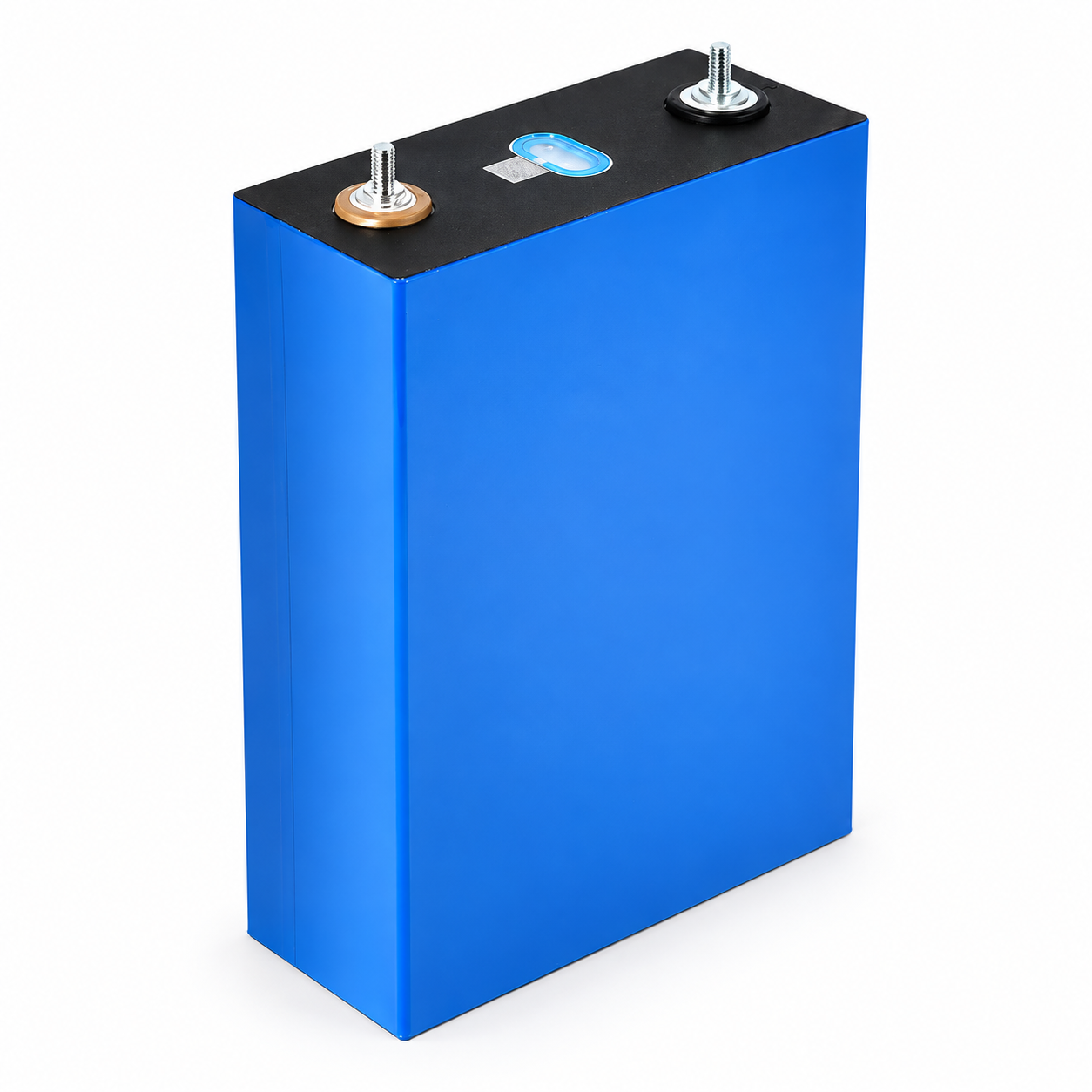

Hithium 314AH Technical Specifications
| Manufacturer | Hithium |
|---|---|
| Model No. | Hithium 314 |
| Typical Voltage | 3.2V |
| Typical Capacity | 314Ah |
| AC Impedance Resistance | ≤0.2mΩ |
| Life Cycle | 11000 |
| Standard Charge/Discharge Current | 0.5C/0.5C |
| Standard Charge Cut-off Voltage | 3.65V |
| Standard Discharge Cut-off Voltage | 2.5V |
| Continuous Charge/Discharge Current | 1C/1C |
| Recommended SOC Window | 10%~90% |
| Charging Working Temperature | 0℃~55℃ |
| Discharging Working Temperature | -25℃~45℃ |
| Self Discharging Rate | <3% |
| Short Term Storage Temperature (< 1 Month) | -20℃~45℃ |
| Long Term Storage Temperature (< 1 Year) | 0℃~35℃ |
| Storage Moisture | <95% |
| Cell Dimension | 207.11*71.7*174.7mm |
| Cell Weight | 5600g |
| Certification | MSDS, UN38.3, CE |
